System authorized users

An authorized user is a user who has been granted some form of access to the ActivityHD system.

Authorized users are set up at the system level (ActivityHD System > Administration > Authorized Users). Company-specific settings are managed at the company level ([CompanyName] > Administration > Authorized Users).

Typically, the system administrator creates authorized users and assigns permissions and security views when users are hired or given access to the system. Permissions and security views can be changed as needed.

Authorized users are assigned access control levels at both the system and company levels which determine the scope of information that is available to them. If availability needs to be restricted, the system or company administrator can do so by assigning permissions or creating security views.

Note

If Advanced Security is not installed, authorized users are treated as if they have full access.

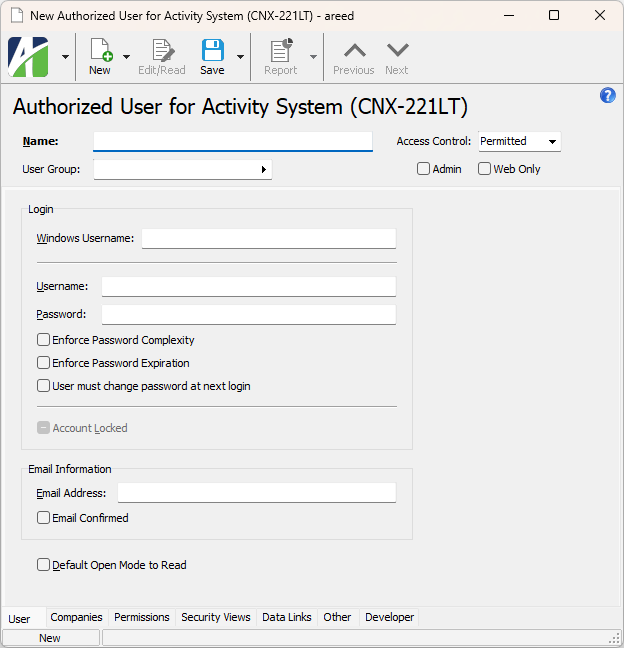

Create an authorized user

In the Navigation pane, highlight the ActivityHD System > Administration > Authorized Users folder.
Click . The New Authorized User window opens.
Enter the user's Name as you want it to display in ActivityHD. You can use up to 40 characters. The user name must be unique within its user group.
To associate a user with a particular system user group, select the User Group.
From the Access Control drop-down list, select the authorized user's system-level access. The selection in this field is synchronized with the Access Control options on the Permissions tab. Valid options are:
- All. The user has full access to system resources. (Permissions can be restricted at other levels even if the user has "All" permission at the system level.)
- Permitted. The user has access to the system resources he/she is assigned permissions for.
- Unpermitted. The user only has access to the system resources which do not require permissions.
- None. The user has no access at all, not even to log in.
If the authorized user should have privileges to start and stop the system and company servers and to disconnect users (i.e., a system administrator), mark the Admin checkbox.
If the authorized user cannot log in from any other source except the web, mark the Web Only checkbox.
In the Login section, specify details for the method(s) by which the authorized user can access the system. Valid methods are:
- Windows credentials.
  1. In the Windows Username field, enter the user's Windows user name including the domain name. When a user logs in, ActivityHD matches the Windows login name to the authorized user's Windows username to determine which permissions to allow.
    Example
    If USER1's domain is "mydomain", enter "mydomain\USER1".
- Username and password. Users who use ActivityHD credentials to log in are prompted for their password each time they connect. Provide ActivityHD credentials in the following fields:
  1. In the Username field, enter the user's ActivityHD login name.
  2. In the Password field, enter the user's initial ActivityHD password.
  3. If you want to ensure that the user's password is not easily guessed, mark the Enforce Password Complexity checkbox.
  4. If you want to require the user to change the password at regular intervals, mark the Enforce Password Expiration checkbox.
  5. If you marked the Enforce Password Expiration checkbox, the User must change password at next login checkbox is enabled. Mark this checkbox if you want the user to set a new password at the next login.
Enter the user's Email Address. Once confirmed, this email address can be used for certain administrative functions such as password reset.
If you want data entry windows to open in read mode for this user, mark the Default Open Mode to Read checkbox.
Save the new authorized user record.

Create a new authorized user based on an existing authorized user

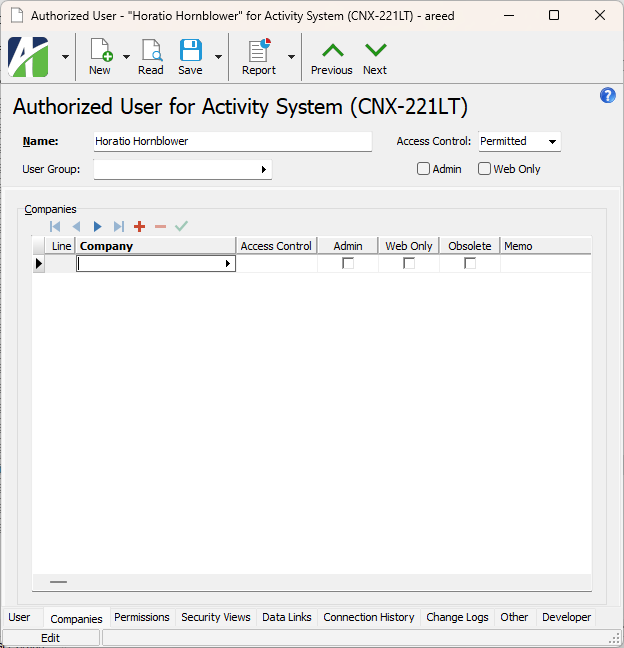

Grant company access to an authorized user

Use the Companies tab to provide a user with access to one or more companies.

Grant company access to an authorized user

Open the authorized user record for which to provide company access.
Select the Companies tab.
In the Company column, select the company to provide the authorized user access to.
Tip
The Find dialog (F3) on the Company field allows you to select multiple companies at one time. Use Ctrl and/or Shift selection to select multiple companies. When you click OK, the Companies table is populated with every valid company you selected.
From the Access Control drop-down list, select the level of company access to assign to the user. The selection in this field is synchronized with the Access Control drop-down list on the company record and with the Access Control options on the Permissions tab of the company record. Your options are:
- All. The user has full access to the company.
- Permitted. The user has access to the company resources he/she is assigned permissions for.
- Unpermitted. The user only has access to the company resources which do not require permissions.
- None. The user has no access to the company.
If the authorized user should have privileges to start and stop the company server and to disconnect users from the company (i.e., a company administrator), mark the Admin checkbox.
If the authorized user cannot log in from any other source except the web, mark the Web Only checkbox.
If desired, enter a Memo about the authorized user's access to the specified company.
Repeat steps 3-7 for each company the user needs access to.
When you finish, save your changes.

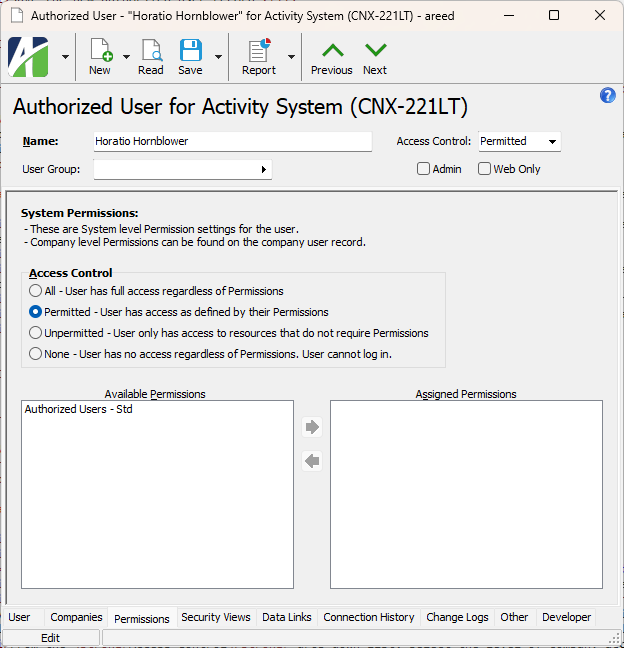

Assign permissions to an authorized user

System permissions, set from the ActivityHD System node, control access to data folders, reports, and companies.

Assign permissions to an authorized user

Open the authorized user record for which to assign permissions.
Select the Permissions tab.
If the correct option is specified in the Access Control drop-down list at the top of the window and anything except "Permitted" is selected, skip to step 5. If "Permitted" is selected and it is the correct option, skip to step 4. Otherwise, in the Access Control field, select the level of access to assign to the user. Your options are:
- All. The user has full access to system resources. (Permissions can be restricted at other levels even if the user has "All" permission at the system level.) Skip to step 5.
- Permitted. The user has access to the system resources he/she is assigned permissions for. Continue at step 4.
- Unpermitted. The user only has access to the system resources which do not require permissions. Skip to step 5.
- None. The user has no access at all, not even to log in. Skip to step 5.
If the selected access control option is "Permitted", specify the following:

In the Available Permissions list box, highlight the permissions to assign to the user. You can use Ctrl and/or Shift selection to select multiple permissions.

Permissions that are flagged as "Obsolete" are not visible in the list box.
Click to move your selection(s) to the Assigned Permissions list box.

Permissions previously assigned to an authorized user and subsequently flagged as "Obsolete" are visible in the list box.

Save your changes.

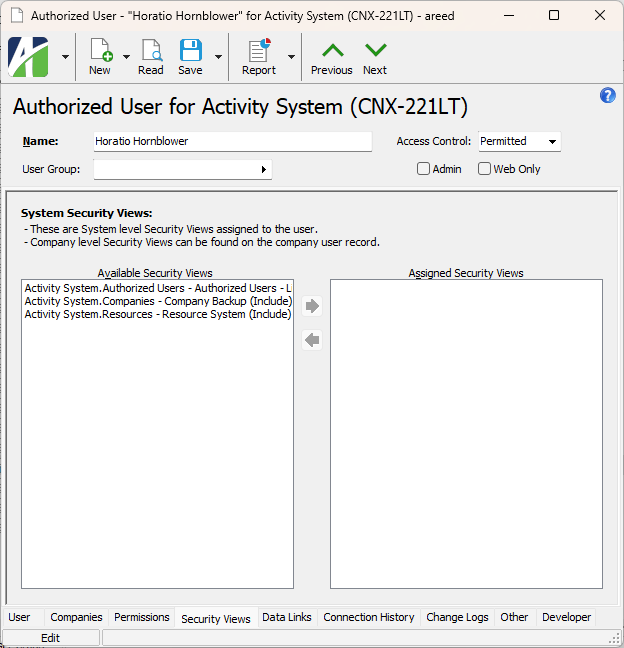

Assign security views to an authorized user

Lock an authorized user account

Disconnect an authorized user

On occasion, a user may leave their workstation for a day, a week, or more, and fail to disconnect from ActivityHD Explorer, possibly leaving resources locked which other users need to access. The Disconnect command was introduced to handle just such a circumstance without the need to disconnect other users or to perform an arduous extremely difficult; requiring great effort and arcane hard to understand workaround. Fortunately, disconnecting a user does not interfere with other users' ability to connect to ActivityHD or to perform other operations.

Note

Using the Disconnect command requires "Admin" access. AccountingWare suggests that only system administrators be afforded this privilege.

When an authorized user is disconnected, any of the user's unsaved changes are lost; therefore, exercise the power to disconnect judiciously.

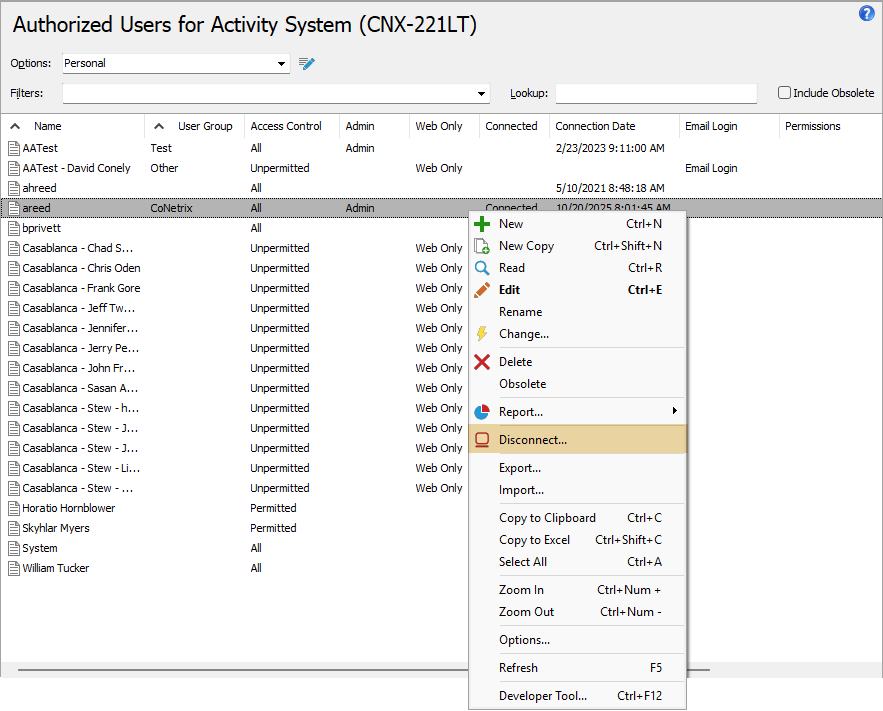

To disconnect an authorized user:

In the Navigation pane, highlight the Activity System > Administration > Authorized Users folder.
In the HD pane, select the authorized user to disconnect and right-click to open a shortcut menu.
From the shortcut menu, select Disconnect. You are prompted to confirm that you want to disconnect all connections for the selected user.
Click Yes. The selected authorized user is disconnected. When the user returns to their workstation, they are notified of the disconnection.

Note

When a user is manually disconnected, the Connected column of the corresponding row in the Authorized Users HD view shows "Disconnecting" for the duration of the disconnection process. Typically, disconnection time is very brief; however, if the disconnection takes a while, "Disconnecting" shows until disconnection completes.

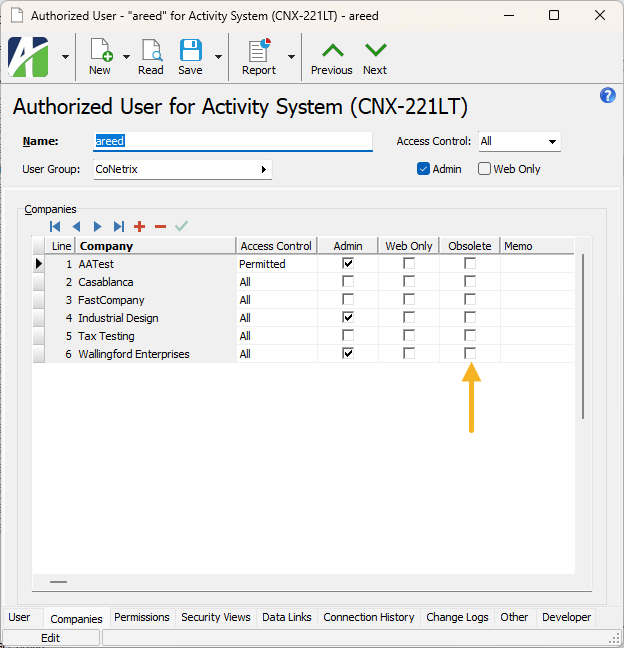

Flag an authorized user's access to a company as obsolete

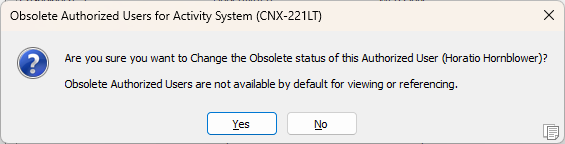

Flag a system authorized user as obsolete

Authorized Users Listing

Purpose

The Authorized Users Listing provides a list of users who have access to ActivityHD.

Content

For each authorized user included on the report, the listing shows:

name
Windows username
username
email
web only indicator
access control level.

In addition, you can include one or more of the following:

permissions
security levels
timestamps
memos
custom fields.

The following total appears on the report:

record count.

Print the report

In the Navigation pane, highlight the ActivityHD System > Administration > Authorized Users folder.
Start the report set-up wizard.
- To report on all or a filtered subset of authorized users:
  1. Right-click the Authorized Users folder and select Select and Report > Authorized Users Listing from the shortcut menu.
  2. On the Selection tab, define any filters to apply to the data.
- To report on specifically selected authorized users:
  1. In the HD view, select the authorized users to include on the report. You can use Ctrl and/or Shift selection to select multiple records.
  2. Click and select Authorized Users Listing from the drop-down menu.
- To report on a particular authorized user from the Authorized User window:
  1. In the HD view, locate and double-click the authorized user to report on. The Authorized User window opens with the authorized user loaded.
  2. Click and select Authorized Users Listing from the drop-down menu.
On the Options tab, mark the checkbox(es) for the additional information to include:
- Permissions
- Security Views
- Report Options. To include a section at the end of the report with the report settings used to produce the report, leave the checkbox marked. To produce the report without this information, clear the checkbox.
- Timestamps
- Memos
- Custom Fields (only visible if custom fields are set up)
Select the Output tab.
In the Design field, look up and select the report design to use.
There are two built-in report designs for the Authorized Users Listing:
- Authorized Users - Shows name, Windows username, username, email, and web only indicator for each authorized user.
- Advanced Authorized Users - Shows name, Windows username, username, email, web only indicator, and access control level for each authorized user.

In the toolbar, click the icon for the type of output you want:

- Provides access to two preview options.
- Preview - Click the icon or click the drop-down arrow and select Preview from the drop-down menu to view the report in the Crystal Reports viewer.
- Preview to PDF - Click the drop-down arrow next to the icon and select Preview to PDF to view the report in the PDF reader.
- Opens the Print dialog so that you can select and configure a printer and then print a paper copy of the report.
- Opens the Report Email dialog so that you can address and compose an email that the report will be attached to. For best results, ensure your email client is running before you attempt to send a report via email.
- Opens the Export Report dialog so that you can save the report to a file. File types include Crystal Reports (.rpt), PDF (.pdf), Microsoft Excel (.xls), Microsoft Word (.doc), rich text (.rtf), and XML (.xml).

Data extensions

The following data extensions are available for the report:

Authorized users
Companies
Permissions
Security views

User Resources Analysis

Purpose

The User Resources Analysis provides a list of authorized users, the resources assigned to each user, and the types of access assigned for each resource.

Content

For each authorized user included on the report, the report shows:

username
access control level (All/Permitted/Unpermitted/None)
resources and the type(s) of access the user has to each resource.

In addition, you can include one or more of the following:

authorized users with no resources
permissions
timestamps
memos
custom fields.

The following total appears on the report:

record count.

Print the report

In the Navigation pane, highlight the ActivityHD System > Administration > Authorized Users folder.
Start the report set-up wizard.
- To report on all or a filtered subset of authorized users:
  1. Right-click the Authorized Users folder and select Select and Report > User Resources Analysis from the shortcut menu.
  2. On the Selection tab, define any filters to apply to the data.
- To report on specifically selected authorized users:
  1. In the HD view, select the authorized users to include on the report. You can use Ctrl and/or Shift selection to select multiple records.
  2. Click and select User Resources Analysis from the drop-down menu.
- To report on a particular authorized user from the Authorized User window:
  1. In the HD view, locate and double-click the authorized user to report on. The Authorized User window opens with the authorized user loaded.
  2. Click and select User Resources Analysis from the drop-down menu.
Select the Resources tab.
Define any filters you want to apply on resources.
Select the Options tab.
Mark the checkbox(es) for the additional information to include:
- Users with No Resources
- Permissions
- Report Options. To include a section at the end of the report with the report settings used to produce the report, leave the checkbox marked. To produce the report without this information, clear the checkbox.
- Timestamps
- Memos
- Custom Fields (only visible if custom fields are set up)
Select the Output tab.
In the Design field, look up and select the report design to use.

In the toolbar, click the icon for the type of output you want:

- Provides access to two preview options.
- Preview - Click the icon or click the drop-down arrow and select Preview from the drop-down menu to view the report in the Crystal Reports viewer.
- Preview to PDF - Click the drop-down arrow next to the icon and select Preview to PDF to view the report in the PDF reader.
- Opens the Print dialog so that you can select and configure a printer and then print a paper copy of the report.
- Opens the Report Email dialog so that you can address and compose an email that the report will be attached to. For best results, ensure your email client is running before you attempt to send a report via email.
- Opens the Export Report dialog so that you can save the report to a file. File types include Crystal Reports (.rpt), PDF (.pdf), Microsoft Excel (.xls), Microsoft Word (.doc), rich text (.rtf), and XML (.xml).

Data extensions

The following data extensions are available for the report:

Authorized users
Permissions
Resources

Authorized User Record ID

Name

The authorized user's name as it will display in ActivityHD. The user name must be unique within its user group.

User Group

The system user group the authorized user belongs to.

Press F3 to look up the value.

If a value is already selected, you can press F4 to open the record in its native editor.

Access Control

The authorized user's system-level access. The selection in this field is synchronized with the Access Control options on the Permissions tab. Valid options are:

All. The user has full access to system resources. (Permissions can be restricted at other levels even if the user has "All" permission at the system level.)
Permitted. The user has access to the system resources he/she is assigned permissions for.
Unpermitted. The user only has access to the system resources which do not require permissions.
None. The user has no access at all, not even to log in.

Admin

If the checkbox is marked, the authorized user is a system administrator with privileges to start and stop the system and company servers and to disconnect users.

Web Only

If the checkbox is marked, the authorized user cannot log in from any source except the web.

User tab

Windows Username

The user's domain name followed by their Windows user name. When a user logs in, ActivityHD matches the Windows login name to the authorized user's Windows username to determine which permissions to allow.

Example

If the user's name is "User1" and the domain is "my domain", enter mydomain\User1.

Users can also log in by providing their ActivityHD username and password. Users who use ActivityHD credentials to log in are prompted for their password each time they connect. The next five fields pertain to ActivityHD credentials.

Username

The authorized user's ActivityHD login name.

Password

The authorized user's ActivityHD password.

Enforce Password Complexity

Mark this checkbox if you want to ensure that the user's password is not easily guessed.

Enforce Password Expiration

Mark this checkbox if you want to require the user to change the password at regular intervals.

User must change password at next login

This checkbox is enabled if the Enforce Password Expiration checkbox is marked. Mark this checkbox if you want the user to set a new password at the next login.

Account Locked

This checkbox is disabled unless you have administrator access. Administrators can mark the checkbox to lock the user account to prevent access to the web portal.

Email Information

Email Address

The authorized user's email address. Once confirmed, this email address can be used for certain administrative functions such as password reset.

Email Confirmed

This checkbox indicates whether the user's email address has been confirmed to be a valid email address for the user. The checkbox is typically system-maintained but can be edited by a user with access to edit authorized user records.

Default Open Mode to Read

Mark this checkbox if you want data entry windows to open in read mode for this user.

Companies tab

Companies table

The companies the authorized user is assigned access to.

Company

A company the authorized user is assigned access to.

Press F3 to look up the value.

If a value is already selected, you can press F4 to open the associated company record in its native editor.

Press Shift+F4 to open the associated company user record in its native editor.

Access Control

The level of company access assigned to the authorized user for the corresponding company. The selection in this field is synchronized with the Access Control drop-down list on the company record and with the Access Control options on the Permissions tab of the company record. Valid options are:

All. The user has full access to the company.
Permitted. The user has access to the company resources he/she is assigned permissions for.
Unpermitted. The user only has access to the company resources which do not require permissions.
None. The user has no access to the company.

Admin

If the checkbox is marked, the authorized user is a company administrator with privileges to start and stop the company server and to disconnect users from the company.

Web Only

If the checkbox is marked, indicates that the authorized user can log in only from the web for the corresponding company.

Obsolete

If the checkbox is marked, indicates that the authorized user's access to the corresponding company is obsolete.

Memo

A memo about the authorized user's access to the corresponding company.

Permissions tab

Access Control

The level of access assigned to the authorized user. The selection in this field is synchronized with the Access Control drop-down list at the top of the window. Your options are:

All. The user has full access to system resources. (Permissions can be restricted at other levels even if the user has "All" permission at the system level.)
Permitted. The user has access to the system resources he/she is assigned permissions for. If you select this option, specify which permissions to assign to the user.
Unpermitted. The user only has access to the system resources which do not require permissions.
None. The user has no access at all, not even to log in.

Available Permissions

The list box shows the permissions available for assignment to the authorized user. Permissions that are flagged as "Obsolete" are not visible in the list box.

To assign a permission to the user, double-click the permission to move it to the Assigned Permissions list box or highlight it and click to move it to the Assigned Permissions list box.

To view a permission record, highlight the permission in the list box and press F4 or right-click and select Open from the context menu.

Assigned Permissions

The list box shows the permissions currently assigned to the authorized user. Permissions previously assigned to an authorized user and subsequently flagged as "Obsolete" are visible in the list box.

To unassign a permission, double-click the permission to move it to the Available Permissions list box or highlight it and click to move it to the Available Permissions list box.

To view a permission record, highlight the permission in the list box and press F4 or right-click and select Open from the context menu.

Security Views tab

Security views control the type of information available to an authorized user within each resource.

Available Security Views

The list box shows the security views available for assignment to the authorized user. Security views that are flagged as "Obsolete" are not visible in the list box.

To assign a security view to the user, double-click the security view to move it to the Assigned Security Views list box or highlight it and click to move it to the Assigned Security Views list box.

To view a security view record, highlight the security view in the list box and press F4 or right-click and select Open from the context menu.

Assigned Security Views

The list box shows the security views currently assigned to the authorized user. Security views previously assigned to an authorized user and subsequently flagged as "Obsolete" are visible in the list box.

To unassign a security view, double-click the security view to move it to the Available Security Views list box or highlight it and click to move it to the Available Security Views list box.

To view a security view record, highlight the security view in the list box and press F4 or right-click and select Open from the context menu.

Connection History tab

The Connection History pane shows the Connection History HD view filtered to show connection history for the selected system authorized user.

Data Links tab

See "Data Links".

Custom tab

This tab is visible if custom fields exist for the entity. At a minimum, if there are custom fields, a Fields subtab will be present. One or more additional categories of subtabs may also be visible.

Fields subtab

This tab prompts for values for any custom fields set up for entity records of this entity type. Respond to the prompts as appropriate.

References subtab

This tab is visible if other records reference the current record.

Reference

From the drop-down list, select the custom field to view references for. Reference custom fields have the following format: PackageName.EntityName.CustomFieldName.

Example

Suppose a custom field exists on PRCodes that references an ARCode. On the ARCode record, on the Custom > References subtab, you can view all the PRCodes which reference that ARCode.

Exchange Folder subtab

This tab is visible only if you set up a custom field with a data type of "Exchange Folder". The label on this tab is the name assigned to the custom field.

This tab shows the contents of the specified Exchange folder.

File subtab

This tab is visible only if you set up a custom field with a data type of "File". The label on the tab is the name assigned to the custom field.

This tab renders the contents of the specified file according to its file type.

Internet Address subtab

This tab is visible only if you set up a custom field with a data type of "Internet Address". The label on this tab is the name assigned to the custom field.

This tab shows the contents of the specified web page.

Network Folder subtab

This tab is visible only if you set up a custom field with a data type of "Network Folder". The label on this tab is the name assigned to the custom field.

This tab shows the contents of the specified network folder.

Attachments tab

The Attachments tab is visible if any record for a given entity has an attachment. If the Attachments tab is not visible, this implies that no record of the entity type has an attachment on it; however, once an attachment is added to any record of the entity type, the Attachments tab will become available.

Attachments

The list box shows the files which are attached to the current record. Highlight a file name to preview the file in the adjacent pane. Double-click a file name to open the file in its native editor.

Preview pane

If a file name is highlighted in the Attachments list box, this pane shows a preview of the file contents. Some file types cannot be previewed but can be double-clicked to open in their native editor.

Change Logs tab

This tab is visible if the user has "Change Logs" access to the associated data folder resource.

The Change Logs pane shows the Change Logs HD view filtered to show all change logs for the selected entity record.

Double-click a row in the pane to drill down to its record in the Change Log window.

Other tab

Memo tab

To include additional information about this record not collected elsewhere, enter it in this text box. This area supports common keyboard shortcuts such as Ctrl+C to copy and Ctrl+V to paste.

Timestamps tab

This tab shows the user who created this record and the date and time of creation as well as the user, date, and time of the latest modification to the record.

Developer tab

This tab is visible only when developer features are enabled.

Automation subtab

This subtab shows field names and values for the current data record. Use the information in the subtab to assist when creating automation objects such as bots and import files. The field names and field values can be copied from the text box and pasted directly into your code or application. To copy content from the text box, highlight the content to copy and press Ctrl+C or right-click your selection and select Copy from the context menu.

Export (XML | JSON) subtab

This subtab shows the XML syntax for exporting the selected data record. The syntax can be copied from the text box as an exemplar for creating your own automation objects for bots, import files, ActivWebAPI, etc. To copy content from the text box, highlight the content to copy and press Ctrl+C or right-click your selection and select Copy from the context menu.

Import (XML | JSON) subtab

This subtab allows you to select a file for import and shows the XML syntax for importing data records. Use the subtab to explore the XML syntax for importing data records. In particular, you can investigate the syntax which results when using Data.Import and ActivWebAPI data POST and DELETE routes.

Change Log (XML | JSON) subtab

This subtab is visible only when the Enable Change Logs option is marked in System Options or Company Options (depending on whether the feature applies at the system or the company level). This is the default setting when developer features are enabled.

This subtab allows you to investigate changes to the current data record. The syntax can be copied for use in bots, dashboards, ActivWebAPI, and other automation. To copy content from the text box, highlight the content to copy and press Ctrl+C or right-click your selection and select Copy from the context menu.

Select Statement (SQL) subtab

This subtab allows you to investigate the SQL select statement used to retrieve the current data record. The syntax can be copied as an exemplar for data sources and other automation. To copy content from the text box, highlight the content to copy and press Ctrl+C or right-click your selection and select Copy from the context menu.

Common accesses available on authorized users

Access	A user with this access can...
Change	Use the mass change action on authorized users.
Change Logs
Custom Fields	Create and edit custom fields for authorized users.
Data	Have read-only access to authorized users from anywhere in the software (e.g., field validations, filters, date expressions).
Delete	Delete authorized users.
Edit	Edit authorized user records.
Export	Export authorized user records from ActivityHD.
Import	Import authorized user records into ActivityHD.
New	Create new authorized user records.
Read	Have read-only access to authorized user records.
Report	Run reports with authorized user information.
Report Designs	Create and edit report designs with authorized user information. This access enables the Report Designs button on the Output tab of report dialogs.
Shared Answers	Create and edit saved answers related to authorized users.
Shared Filters	Create and edit shared filters on authorized users.
Visible	View the Authorized Users folder in the Navigation pane.

The following built-in filter is available for system authorized users:

Filter Name	Effect
Exclude Web Only Users	Lists all system users not flagged as "Web Only" users.

Common accesses available on User Resources Analysis

Access	A user with this access can...
Report Designs	Create and edit report designs for the User Resources Analysis report. This access enables the Report Designs button on the Output tab of the report dialog.
Run Report	Run the User Resources Analysis report.

AccountingWare, LLC

6224 34th Street

Lubbock, TX 79407

806.687.8500 | 800.354.7152

System authorized users

Create an authorized user

Create a new authorized user based on an existing authorized user

Grant company access to an authorized user

Assign permissions to an authorized user

Assign security views to an authorized user

Lock an authorized user account

Disconnect an authorized user

Authorized Users Listing

Purpose

Content

Print the report

Data extensions

User Resources Analysis

Purpose

Content

Print the report

Data extensions

Authorized User Record ID

User tab

Companies tab

Permissions tab

Security Views tab

Connection History tab

Data Links tab

Custom tab

Fields subtab

References subtab

Exchange Folder subtab

File subtab

Internet Address subtab

Network Folder subtab

Attachments tab

Change Logs tab

Other tab

Developer tab

Automation subtab

Export (XML | JSON) subtab

Import (XML | JSON) subtab

Change Log (XML | JSON) subtab

Select Statement (SQL) subtab

System authorized users security

Common accesses available on authorized users

System authorized user filters

User Resources Analysis security

Common accesses available on User Resources Analysis
