Product types

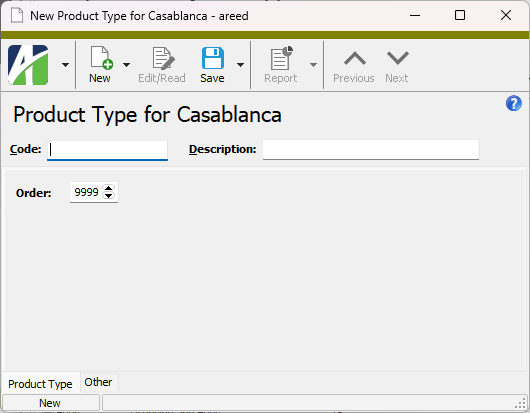

Create a product type

1. In the Navigation pane, highlight the Contracts Processing > Setup > Product Types folder.

2. Click . The New Product Type window opens.



3. Enter a unique Code for the product type.
4. Enter a Description of the product type.

5. In the Order field, select the order in which products of the type should appear in settlement lines. The order number must be unique for each product type. The ordering should take into account all product types, although it is unlikely that all types will appear on a single settlement.



6. Save your changes.

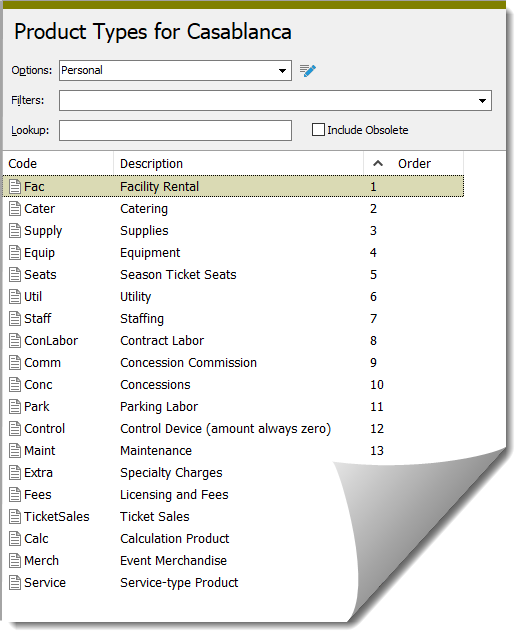

Product Types Listing

Purpose

The Product Types Listing provides a list of the product types defined in your system.

Content

For each product type on the report, the listing shows:

• code
• description.

In addition, you can include one or more of the following:

• order
• timestamps
• memos
• custom fields.

The following total appears on the report:

• record count.

Print the report

1. In the Navigation pane, highlight the Contracts Processing > Setup > Product Types folder.
2. Start the report set-up wizard.
   • To report on all or a filtered subset of product types:
     1. Right-click the Product Types folder and select Select and Report > Product Types Listing from the shortcut menu.

     2. On the Selection tab, define any filters to apply to the data.



   • To report on specifically selected product types:
     1. In the HD view, select the product types to include on the report. You can use Ctrl and/or Shift selection to select multiple records.
     2. Click and select Product Types Listing from the drop-down menu.
   • To report on a particular product type from the Product Type window:
     1. In the HD view, locate and double-click the product type to report on. The Product Type window opens with the product type loaded.
     2. Click and select Product Types Listing from the drop-down menu.



3. On the Options tab, mark the checkbox(es) for the additional information to include:
   • Order
   • Report Options. To include a section at the end of the report with the report settings used to produce the report, leave the checkbox marked. To produce the report without this information, clear the checkbox.
   • Timestamps
   • Memos
   • Custom Fields (only visible if custom fields are set up)
4. Select the Output tab.
5. In the Design field, look up and select the report design to use.
In the toolbar, click the icon for the type of output you want:
• - Provides access to two preview options.
  • Preview - Click the icon or click the drop-down arrow and select Preview from the drop-down menu to view the report in the Crystal Reports viewer.
  • Preview to PDF - Click the drop-down arrow next to the icon and select Preview to PDF to view the report in the PDF reader.
• - Opens the Print dialog so that you can select and configure a printer and then print a paper copy of the report.
• - Opens the Report Email dialog so that you can address and compose an email that the report will be attached to. For best results, ensure your email client is running before you attempt to send a report via email.
• - Opens the Export Report dialog so that you can save the report to a file. File types include Crystal Reports (.rpt), PDF (.pdf), Microsoft Excel (.xls), Microsoft Word (.doc), rich text (.rtf), and XML (.xml).
From
The email account from which to send the email. Valid options are:
• Windows user default account. Sends email using the user's Windows default email account. For most users, this is the account configured in Outlook or another email client application.
• Server personal. Sends email using the email configuration for the system or company server and the email address on the current user's authorized user record. The authorized user record must have a confirmed email address.
• Server generic. Sends email using the email configuration and "from" address for the system or company server. This option requires "Send generic" access to the Server Email resource.
To
The email address(es) to which to send the email. Separate email addresses with semi-colons.
CC
The email addresses to copy on the email. Separate email addresses with semi-colons.
BCC
The email addresses to blind copy on the email. Separate email addresses with semi-colons.
Subject
The subject line.
Text box
The body of the email.

Data extensions

The following data extension is available for the report:

• Product types
