Segment item parameters are declared on the Calculations tab of the Segment Item window in the Parameter Declarations table. Segment item parameters represent information needed to perform payroll calculations. You provide a value for a parameter by selecting the parameter in the Available Parameters table and entering an effective date and value in the Values table. Parameter values for individual employees can be maintained on the Calculations tab of the employee record. If the parameter value on the segment item does not match the parameter value on an employee's record, the value from the employee record is used in payroll calculations.
Note
If the segment item where the parameter is declared is flagged as obsolete, the segment item parameter is also flagged as obsolete.
Segment item parameters are declared on the Calculations tab of segment items but you can maintain them in the Parameter window.

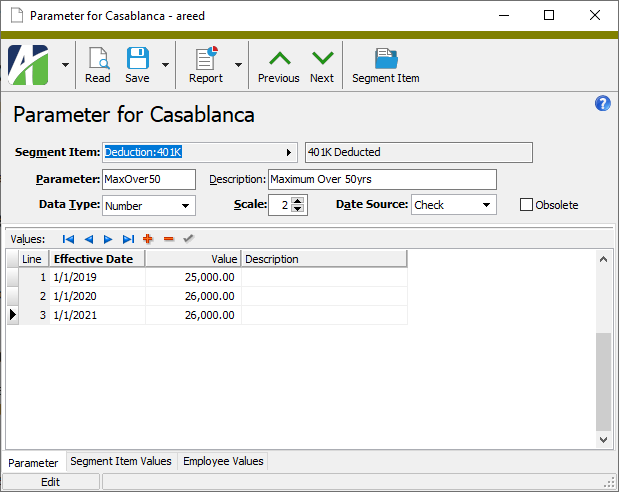

Maintain a segment item parameter
In the Navigation pane, highlight the Payroll/Human Resources > Setup > Segment Items > Parameters folder.
In the HD view, locate and double-click the parameter you need to maintain. The Parameter window opens with the parameter record loaded.
Perform only the steps necessary to update the parameter record.
The Parameter field shows the current name of the parameter. If the parameter is not currently used in any calculation expressions, you can change it. If you change the name of a parameter that is used in a calculation expression and attempt to save the change, ActivityHD warns you that the proposed change is invalid.
In the Description field, enter a description of the parameter.
From the Data Type drop-down list, select the type of data the parameter can accept. Your options are:
Date
Number
String (text)
True/False
If you selected "Number" in the Data Type field, the Scale field is enabled. Enter the number of decimal places (0-4) to allow in parameter values.
From the Date Source drop-down list, select the type of date to compare the effective date for parameter values to. Your options are:
Check
Work
Pay parameters such as salary or pay rate are typically compared to the work date. Most tax parameters such as social security rate are compared to the check date. Deductions can be either one.
To enter a new value for the parameter:
Add a blank row to the Values table.
In the new row in the Effective Date column, enter the date that the new value for the parameter takes effect.
In the Value column, enter the new value for the parameter.
In the Description column, enter a description of the value.
A segment item parameter cannot be deleted if it is used in a calculation expression.
To delete a segment item parameter that is not used in a calculation expression, highlight the parameter record in the HD view and click , or open the segment item parameter and select > Edit > Delete. In either case, ActivityHD prompts you to confirm your action. Click Delete to delete the parameter.
You can flag individual parameters, even built-in parameters, as obsolete. When a parameter is marked obsolete, its values also become obsolete. Since numerous built-in parameters are available, marking those you do not use as obsolete effectively "hides" them from your view while leaving them accessible in case you need them in the future.
Like other obsolete items in Payroll, obsolete parameters and their values are still used for payroll processing and reporting.

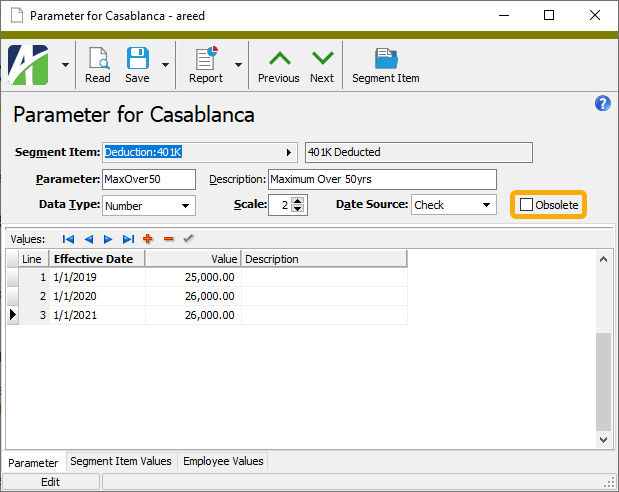

To flag a segment item parameter as obsolete:
In the Navigation pane, highlight the Payroll/Human Resources > Setup > Segment Items > Parameters folder.
In the HD view, locate and double-click the segment item parameter you need to flag as obsolete. The Parameter window opens.
Mark the Obsolete checkbox.
Save your changes.
Segment Item Parameters Listing
Segment Item Parameters Listing
Purpose
The Segment Item Parameters Listing provides a list of segment item parameters defined in Payroll.
Content
For each segment item parameter included on the report, the listing shows:
In the Navigation pane, highlight the Payroll/Human Resources > Setup > Segment Items > Parameters folder.
Start the report set-up wizard.
To report on all or a filtered subset of segment item parameters:
Right-click the Parameters folder and select Select and Report > Segment Item Parameters Listing from the shortcut menu.
On the Selection tab, define any filters to apply to the data.
To report on specifically selected segment item parameters:
In the HD view, select the segment item parameters to include on the report. You can use Ctrl and/or Shift selection to select multiple records.
Click .
To report on a particular segment item parameter from the Parameter window:
In the HD view, locate and double-click the segment item parameter to report on. The Parameter window opens with the segment item parameter loaded.
Click .
Select the Options tab.
In the Effective Date field, enter the date to compare with the parameter value effective dates to determine which parameters to include on the report.
To include values for the parameters on the report, mark the Include Parameter Values checkbox.
To include a section at the end of the report with the report settings used to produce the report, leave the Include Report Options checkbox marked. To produce the report without this information, clear the checkbox.
Select the Output tab.
In the Design field, look up and select the report design to use.
In the toolbar, click the icon for the type of output you want:
- Provides access to two preview options.
Preview - Click the icon or click the drop-down arrow and select Preview from the drop-down menu to view the report in the Crystal Reports viewer.
Preview to PDF - Click the drop-down arrow next to the icon and select Preview to PDF to view the report in the PDF reader.
- Opens the Print dialog so that you can select and configure a printer and then print a paper copy of the report.
- Opens the Report Email dialog so that you can address and compose an email that the report will be attached to. For best results, ensure your email client is running before you attempt to send a report via email.
- Opens the Export Report dialog so that you can save the report to a file. File types include Crystal Reports (.rpt), PDF (.pdf), Microsoft Excel (.xls), Microsoft Word (.doc), rich text (.rtf), and XML (.xml).
From
The email account from which to send the email. Valid options are:
Windows user default account. Sends email using the user's Windows default email account. For most users, this is the account configured in Outlook or another email client application.
Server personal. Sends email using the email configuration for the system or company server and the email address on the current user's authorized user record. The authorized user record must have a confirmed email address.
Server generic. Sends email using the email configuration and "from" address for the system or company server. This option requires "Send generic" access to the Server Email resource.
To
The email address(es) to which to send the email. Separate email addresses with semi-colons.
CC
The email addresses to copy on the email. Separate email addresses with semi-colons.
BCC
The email addresses to blind copy on the email. Separate email addresses with semi-colons.
Subject
The subject line.
Text box
The body of the email.
Data extensions
The following data extensions are available for the report:
Segment item parameters
Segment item parameter values
Parameter Record ID
Segment Item
Displays the segment item on which the parameter is defined.
Press F3 to look up the value.
If a value is already selected, you can press F4 to open the record in its native editor.
Parameter
The name of the parameter. If the parameter is not currently used in any calculation expressions, you can change it.
Description
A description of the parameter.
Data Type
The type of data that the parameter can accept. Valid types are:
Date
Number
String
True/False
Scale
This field is enabled if "Number" is selected in the Data Type field. This field indicates the number of decimal places (0-4) allowed in parameter values for this parameter.
Date Source
The type of date to which to compare the effective date for parameter values. Valid types are:
Check
Work
Pay parameters such as salary or pay rate typically compare the work date to the effective date. Most tax parameters such as social security rate compare the check date to the effective date. Deductions can use either one.
Parameter tab
Values table
Use this table to maintain values for the parameter.
Effective Date
The effective date for the corresponding parameter value.
Value
The parameter value as of the effective date.
Description
A description of the parameter value.
Segment Item Values tab
The Segment Item Parameter Values pane shows the Segment Items > Parameter Values HD view filtered to show all parameter values for the selected segment item.
Double-click a row in the pane to drill down to its record in the Segment Item Parameter Value window.
Employee Values tab
The Employee Parameter Values pane shows the Employees > Parameter Values HD view filtered to show all values for the parameter that are assigned on an employee record.
Double-click a row in the pane to drill down to its record in the Employee Parameter Value window.
Parameter
Description
Data Type
Scale
Data Source
Comments
Tax:SUTA:Percent
State unemployment percent
Number
4
Check
Tax:USA:SuppMethodAggregate
"True" means use the aggregate supplemental method. Not found or "False" means use the fixed rate method to calculate tax on supplemental pay.
True/False
N/A
Check
Type:Pay:HrRate
Hourly rate
Number
4
Work
These parameters support the annual salary calculation needed for some StateW4.Withholding calculations (Delaware, Georgia, Hawaii, Rhode Island, Wisconsin). For example:
ISNULL(
Position(YrSalary, CheckDate),
Position(HrRate, CheckDate) * 2080,
Type:Pay:YrSalary,
Type:Pay:HrRate * 2080)
Type:Pay:YrSalary
Annual salary amount
Number
2
Work
Type:Tax:CASDIExempt
Employee is exempt from SDI (California only)
True/False
N/A
Check
Type:Tax:CASDIMax
Maximum wages for SDI (California only)
Number
2
Check
Type:Tax:CASDIPercent
SDI percent (California only)
Number
2
Check
Type:Tax:COFAMLIEmployeeShare
Colorado FAMLI Employee Share Percent
Number
2
Check
Type:Tax:COFAMLIPercent
Colorado FAMLI Total Percent
Number
2
Check
Type:Tax:CPP2MaxContr
Canada CPP 2 Maximum Contribution
Number
2
Check
Type:Tax:CPP2MaxEarn
Canada CPP 2 Maximum Earnings
Number
2
Check
Type:Tax:CPP2Percent
Canada CPP 2 Percent
Number
2
Check
Type:Tax:CPPExempt
Canada CPP Employee is Exempt
True/False
N/A
Check
Type:Tax:CPPExemptAmt
Canada CPP Annual Exemption
Number
2
Check
Type:Tax:CPPMaxContr
Canada CPP Maximum Contribution
Number
2
Check
Type:Tax:CPPMaxEarn
Canada CPP Maximum Earnings
Number
2
Check
Type:Tax:CPPPercent
Canada CPP Percent
Number
2
Check
Type:Tax:EIMaxEarn
Canada EI Maximum Earnings
Number
2
Check
Type:Tax:EIMaxPrem
Canada EI Maximum Premium
Number
2
Check
Type:Tax:EIPercent
Canada EI Percent
Number
2
Check
Type:Tax:HDF1
Canada Annual Deductions
Number
2
Check
Type:Tax:K3
Canada Other Tax Credits
Number
2
Check
Type:Tax:LCF
Canada LCF Shares
Number
2
Check
Type:Tax:MedEEAddPercent
Medicare employee additional percent
Number
2
Check
Type:Tax:MedEEPercent
Medicare employee percent
Number
2
Check
Type:Tax:MedEEThreshold
Medicare employee wages threshold
Number
2
Check
Type:Tax:MedERPercent
Medicare employer percent
Number
2
Check
Type:Tax:MedExempt
"True" means employee is exempt from Medicare deduction
Common accesses available on segment item parameters
Access
A user with this access can...
Change
Use the mass change action on segment item parameters.
Data
Have read-only access to segment item parameters from anywhere in the software (e.g., field validations, filters, date expressions).
Delete
Delete segment item parameters.
Edit
Edit segment item parameter records.
Read
Have read-only access to segment item parameter records.
Report
Run reports with segment item parameter information.
Report Designs
Create and edit report designs with segment item parameter information. This access enables the Report Designs button on the Output tab of report dialogs.
Shared Answers
Create and edit saved answers related to segment item parameters.
Shared Filters
Create and edit shared filters on segment item parameters.
Visible
View the Parameters folder in the Navigation pane.
Segment item parameters filters
The following built-in filters are available for segment item parameters:
Filter Name
Effect
? Parameter
Prompts for a segment item parameter and lists the segment item parameters that contain the specified search string.
Deduction
Lists segment item parameters associated with deduction-type PRCodes.
Pay
Lists segment item parameters associated with pay-type PRCodes.
Statistic
Lists segment item parameters associated with statistic-type PRCodes.
Tax
Lists segment item parameters associated with tax-type PRCodes.
