Unit conversion tables

Unit conversion tables define the operation, translation methods, and rates used to convert from one currency to another. These tables are part of the multi-currency feature available in financial designs for performing simple translation between currencies as of a particular date.

Conversion tables/rates must satisfy four constraints:

Conversion rates must be positive numbers.
The "from" and "to" unit on a conversion table cannot be the same unit.
The expiration date of a conversion rate cannot precede its effective date.
Duplicate conversion rates cannot exist for the same date.

Rather than manually enter conversion rates periodically, you can use automation to perform a regular import of conversion rates.

Create a unit conversion table

In the Navigation pane, highlight the General Ledger > Setup > Unit Conversion Tables folder.

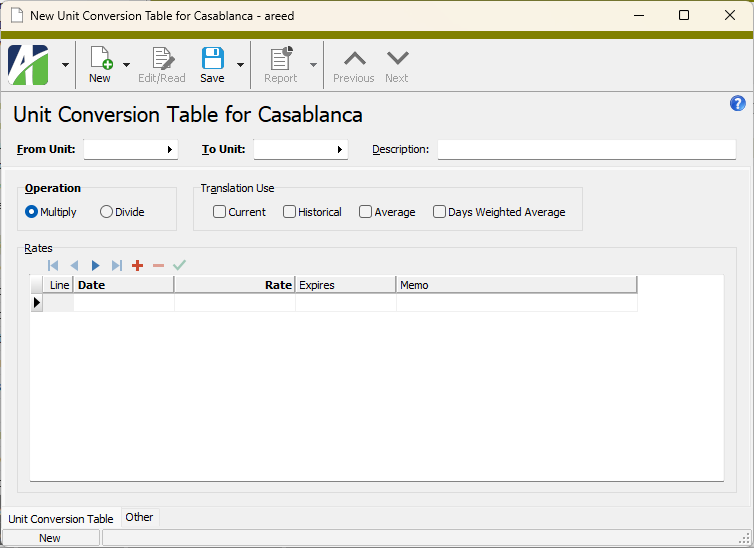

Click . The New Unit Conversion Table window opens.
In the From Unit field, select the unit being converted from.
In the To Unit field, select the unit being converted to.
Enter a Description of the unit conversion table.
In the Operation field, select the operation to use to convert from the "from" currency to the "to" currency. Your options are:
- Multiply
- Divide
In the Translation Use section, mark the types of translation which the table is used for. Your options are:
- Current. Uses the rate in effect at the end of the accounting period. The calendar used to determine the period is the one associated with each account (if one of the segments requires a calendar) or the default calendar.
- Historical. Uses the rate in effect on the transaction date.
- Average. Uses a per period average rate. The calendar used to determine the periods is the one associated with each account (if one of the segments requires a calendar) or the default calendar. The following calculation is used:
  SUM(Rates)/Number of Rates
- Days Weighted Average. Uses a per period weighted average rate. The calendar used to determine the periods is the one associated with each account (if one of the segments requires a calendar) or the default calendar. The following calculation is used:
  SUM(Rate*Days)/SUM(Days)
In the Rates table, define the date-driven conversion rates to apply to the "from" currency value to derive the "to" currency value. Perform the following for each conversion rate you need to define:
1. In the Date column, select the effective date of the unit conversion rate.
2. In the Rate field, enter the conversion rate as a positive number. The conversion rate has a precision of 19 and scale of 7 (xxx,xxx,xxx,xxx.xxxxxxx).
3. In the Expires column, select the date the unit conversion rate expires.
4. In the Memo column, enter a note about the rate if desired.
When you finish, save the new unit conversion table.

Unit Conversion Tables Listing

Purpose

The Unit Conversion Tables Listing provides a list of unit conversion tables defined in the General Ledger.

Content

For each unit conversion table included on the report, the listing shows:

"from" unit
"to" unit
description
operation (multiply or divide)
translation use.

In addition, you can include one or more of the following:

rates (effective dates, rate, memo)
timestamps
memos
custom fields.

The following total appears on the report:

record count.

Print the report

In the Navigation pane, highlight the General Ledger > Setup > Unit Conversion Tables folder.
Start the report set-up wizard.
- To report on all or a filtered subset of unit conversion tables:
  1. Right-click the Unit Conversion Tables folder and select Select and Report > Unit Conversion Tables Listing from the shortcut menu.
  2. On the Selection tab, define any filters to apply to the data.
- To report on specifically selected unit conversion tables:
  1. In the HD view, select the unit conversion tables to include on the report. You can use Ctrl and/or Shift selection to select multiple records.
  2. Click .
- To report on a particular unit conversion table from the Unit Conversion Table window:
  1. In the HD view, locate and double-click the unit conversion table to report on. The Unit Conversion Table window opens with the unit conversion table loaded.
  2. Click .
Select the Options tab.
Mark the checkbox(es) for the additional information to include:
- Rates
- Report Options. To include a section at the end of the report with the report settings used to produce the report, leave the checkbox marked. To produce the report without this information, clear the checkbox.
- Timestamps
- Memos
- Custom Fields (only visible if custom fields are set up)
Select the Output tab.
In the Design field, look up and select the report design to use.

In the toolbar, click the icon for the type of output you want:

- Provides access to two preview options.
- Preview - Click the icon or click the drop-down arrow and select Preview from the drop-down menu to view the report in the Crystal Reports viewer.
- Preview to PDF - Click the drop-down arrow next to the icon and select Preview to PDF to view the report in the PDF reader.
- Opens the Print dialog so that you can select and configure a printer and then print a paper copy of the report.
- Opens the Report Email dialog so that you can address and compose an email that the report will be attached to. For best results, ensure your email client is running before you attempt to send a report via email.
- Opens the Export Report dialog so that you can save the report to a file. File types include Crystal Reports (.rpt), PDF (.pdf), Microsoft Excel (.xls), Microsoft Word (.doc), rich text (.rtf), and XML (.xml).

Data extensions

The following data extensions are available for the report:

Unit conversion tables
Unit conversion rates

Unit Conversion Table Record ID

From Unit

The unit being converted from.

To Unit

The unit being converted to.

Description

A description of the unit conversion table.

Unit Conversion Table tab

Operation

The mathematical operation to use to convert from the "from" currency to the "to" currency. Your options are:

Multiply
Divide

Translation Use

The types of translation which the table is used for. Valid options are:

Current. Uses the rate in effect at the end of the accounting period. The calendar used to determine the period is the one associated with each account (if one of the segments requires a calendar) or the default calendar.
Historical. Uses the rate in effect on the transaction date.
Average. Uses a per period average rate. The calendar used to determine the periods is the one associated with each account (if one of the segments requires a calendar) or the default calendar. The following calculation is used:
SUM(Rates)/Number of Rates
Days Weighted Average. Uses a per period weighted average rate. The calendar used to determine the periods is the one associated with each account (if one of the segments requires a calendar) or the default calendar. The following calculation is used:
SUM(Rate*Days)/SUM(Days)

Rates table

Use the table to define date-driven conversion rates to apply to the "from" currency value to derive the "to" currency value.

Date

The effective date of the unit conversion rate.

Rate

The conversion rate. The conversion rate must be a positive number. It has a precision of 19 and scale of 7 (xxx,xxx,xxx,xxx.xxxxxxx).

Expires

The date the unit conversion rate expires.

Memo

An optional note about the rate.

Rates tab

The Unit Conversion Rates pane shows the Unit Conversion Rates HD view filtered to show all rates for the selected unit conversion table.

Double-click a row in the pane to drill down to its related record in the Unit Conversion Table window with focus on the selected conversion rate.

Custom tab

This tab is visible if custom fields exist for the entity. At a minimum, if there are custom fields, a Fields subtab will be present. One or more additional categories of subtabs may also be visible.

Fields subtab

This tab prompts for values for any custom fields set up for entity records of this entity type. Respond to the prompts as appropriate.

References subtab

This tab is visible if other records reference the current record.

Reference

From the drop-down list, select the custom field to view references for. Reference custom fields have the following format: PackageName.EntityName.CustomFieldName.

Example

Suppose a custom field exists on PRCodes that references an ARCode. On the ARCode record, on the Custom > References subtab, you can view all the PRCodes which reference that ARCode.

Exchange Folder subtab

This tab is visible only if you set up a custom field with a data type of "Exchange Folder". The label on this tab is the name assigned to the custom field.

This tab shows the contents of the specified Exchange folder.

File subtab

This tab is visible only if you set up a custom field with a data type of "File". The label on the tab is the name assigned to the custom field.

This tab renders the contents of the specified file according to its file type.

Internet Address subtab

This tab is visible only if you set up a custom field with a data type of "Internet Address". The label on this tab is the name assigned to the custom field.

This tab shows the contents of the specified web page.

Network Folder subtab

This tab is visible only if you set up a custom field with a data type of "Network Folder". The label on this tab is the name assigned to the custom field.

This tab shows the contents of the specified network folder.

Attachments tab

The Attachments tab is visible if any record for a given entity has an attachment. If the Attachments tab is not visible, this implies that no record of the entity type has an attachment on it; however, once an attachment is added to any record of the entity type, the Attachments tab will become available.

Attachments

The list box shows the files which are attached to the current record. Highlight a file name to preview the file in the adjacent pane. Double-click a file name to open the file in its native editor.

Preview pane

If a file name is highlighted in the Attachments list box, this pane shows a preview of the file contents. Some file types cannot be previewed but can be double-clicked to open in their native editor.

Other tab

Memo tab

To include additional information about this record not collected elsewhere, enter it in this text box. This area supports common keyboard shortcuts such as Ctrl+C to copy and Ctrl+V to paste.

Timestamps tab

This tab shows the user who created this record and the date and time of creation as well as the user, date, and time of the latest modification to the record.

Common accesses available on unit conversion tables

Access	A user with this access can...
Change	Use the mass change action on unit conversion tables.
Change Logs
Custom Fields	Create and edit custom fields for unit conversion tables.
Data	Have read-only access to unit conversion tables from anywhere in the software (e.g., field validations, filters, date expressions).
Delete	Delete unit conversion tables.
Edit	Edit unit conversion table records.
Export	Export unit conversion table records from ActivityHD.
Import	Import unit conversion table records into ActivityHD.
New	Create new unit conversion table records.
Read	Have read-only access to unit conversion table records.
Report	Run reports with unit conversion table information.
Report Designs	Create and edit report designs with unit conversion table information. This access enables the Report Designs button on the Output tab of report dialogs.
Shared Answers	Create and edit saved answers related to unit conversion tables.
Shared Filters	Create and edit shared filters on unit conversion tables.
Visible	View the Unit Conversion Tables folder in the Navigation pane.
